The precision laser measuring tool with zoom digital viewfinder and inclinometer
What is it?
The Leica DISTO™ D8 is a highly accurate laser measuring tool with integral inclinometer with a measuring range of 0.05m to 200m and a typical accuracy of +/- 1mm.
Indirect measurements such as window heights can be calculated using the integral Pythagoras function. The Trapezium function allows for quick measurement of roof slopes and facades.
A 4x zoom and a digital viewfinder with colour display lets you measure distant objects, where the laser does not show well such as in bright sunlight.
The D8 features Bluetooth connectivity for direct data transfer into Windows-based programs such as Excel, Word, AutoCAD and, of course, PV*SOL and T*SOL.
What is it for?

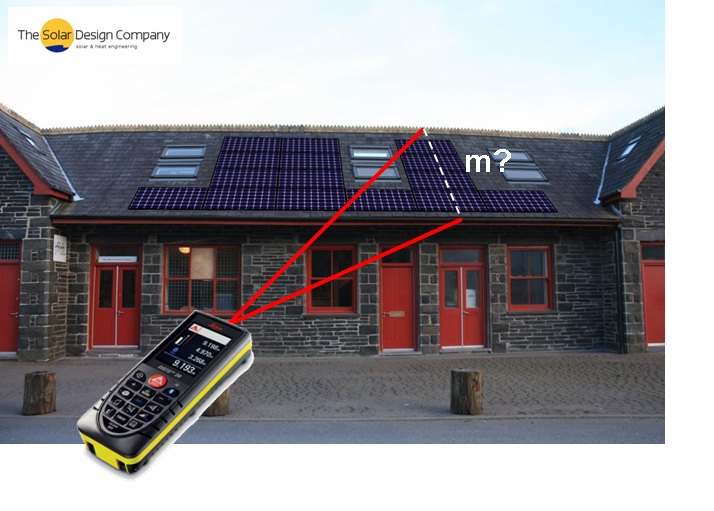

The Leica DISTO™ D8 makes site surveys a quick and easy process. Also, surveys become safer by allowing surveyors to remain on the ground.
 The Bluetooth interface makes data transfer to programs like PV*SOL an error-free process.
It is the state-of-the-art distance- and angle-measuring tool for the solar energy, construction and surveying industries.
The Leica DISTO™ D8 is an indispensable tool for the professional solar installer.
We recommend purchasing the DISTO™ D8 with the Tri100 tripod and TA360 adaptor bracket as pictured. These sturdy additions allow for improved balance, stability and precise tilt and pan movements in increments. The adaptor bracket ensures the measurement point from the back of the DISTO™ is always in the same position.
 |
 |

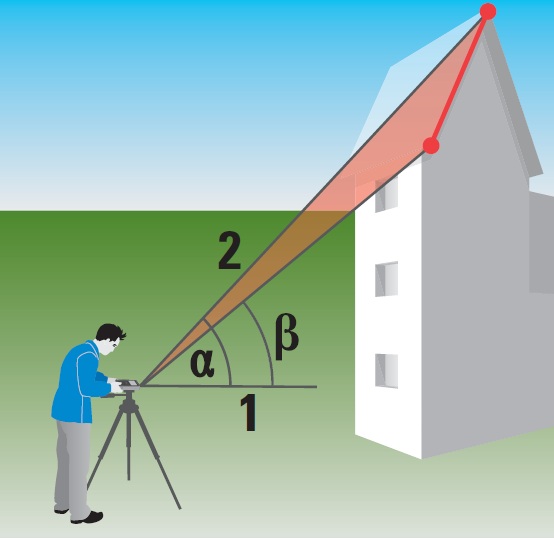

Height measurement
without reflective points |

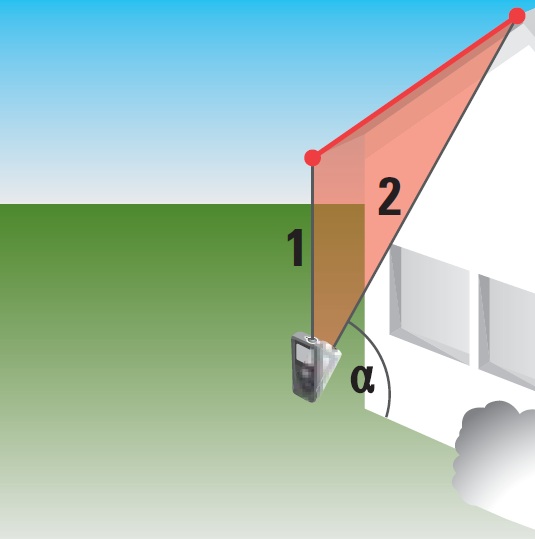

Roof slope measurement |
 |
 |

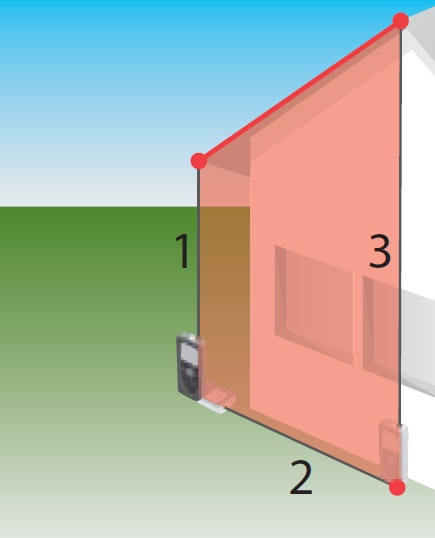

Trapezium function |
Trapezium function
with tilt sensor |

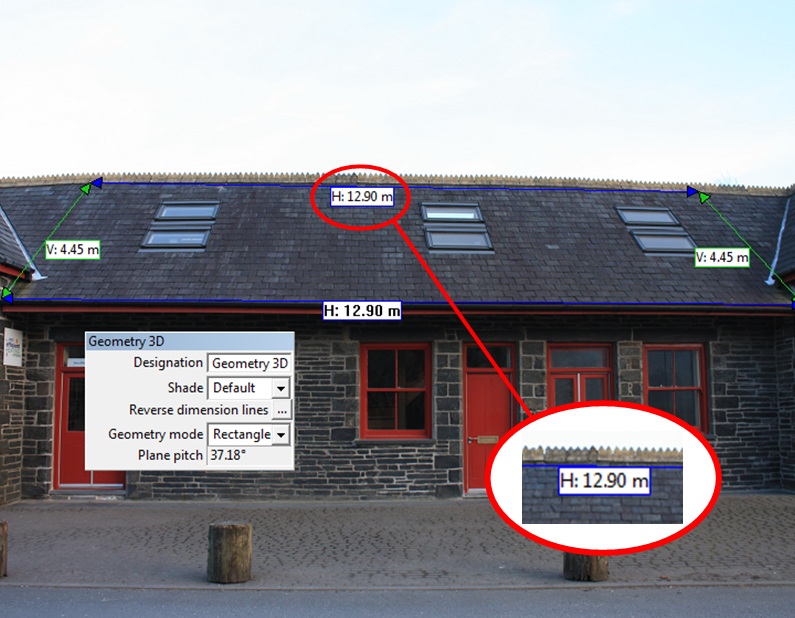

How does it import into PV*SOL Photoplan?
It is easy to beam the roof width or inclined length from your DISTO™ D8 straight into PV*SOL Photoplan.
Just highlight the relevant measurement box in Photoplan with the mouse cursor and click the Bluetooth transfer button.
The DISTO™ will automatically transfer all specified measurements directly into the Photoplan boxes as per the picture below:
 |
The Leica DISTO™ D8: RRP £619.00
The Leica DISTO™ D8: Our price £599.00
Tripod: £59.99
Mounting Bracket: £59.99
Bundle deal available, contact us for details
All prices shown are without VAT.
